1577nm WDM Pluggable Blocking Filter for for XG-PON/XGS-PON

Features
Thin Film Filter Technology
Easy to install
Bidirectional transmission
Prevent interference
Application
FTTx
XG-PON/XGS-PON/10G PON
RF Overlay
ONU equipment
WDM system
PON network
CATV link

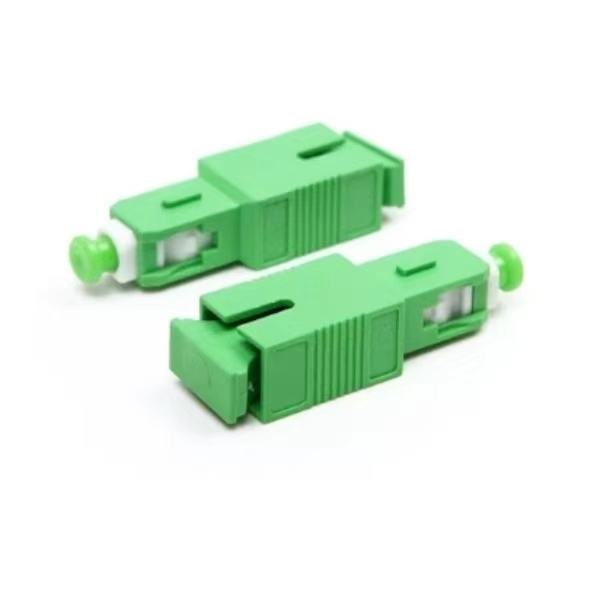

    HyOptic Pluggable Blocking FWDM 1577nm adapter package is a device designed for use in fiber optic communication systems, which can block signals at 1577nm wavelength to prevent interference with existing GPON networks or other services. This adapter is usually installed on existing GPON ONU equipment to prevent XG-PON signals from interfering with existing GPON or RF Overlay customers.
    Parameters Value
    Wavelength Pass 1310/1490 /1550 [nm] <1560
    Wavelength Blocked [nm] >1574-1581
    Pass Port Insertion Loss [dB] 0.80
    Pass Port Isolation for 1574 -1581nm [dB] >43
    Return Loss@1310nm [dB] 45
    Return Loss @1550nm [dB] 48
    Polarization Dependent Loss (PDL) [dB] 0.20
    Operating Temp. Range [°C] -40 t0+85
    Storage Temp. Range  [°C] -40 to+85
    Connector type SC/APC
    File Name : Format: Size: Download:
    Contact us for details!

    *

    *

    *

    *
