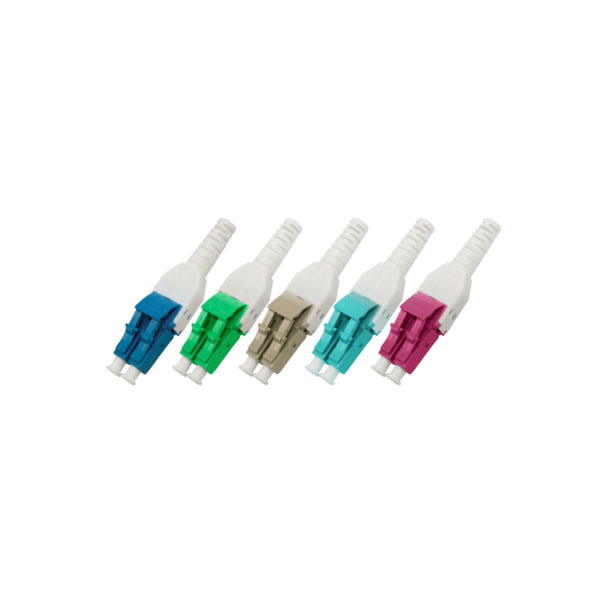

LC Uniboot Duplex Optical Cable

Different colors for configuration
SM UPC blue color
SM APC green color
MM OM2 beige color
MM OM3 aqua color
MM OM4 violet color

Different materials optional: PVC LSZH (OFNR OFNP)
PC UPC APC optical surface optional
pc upc apc
    HyOptic LC Uniboot Duplex fiber optical patch cord is designed for Data Center, increasing cable density up to 50%, built-in precision ceramic ferrule with very low insertion loss, have high quality of mechanical and optical performance.

    Features
    Increase cabling density up to 50%
    ROHS Compliance
    Compliance with UL 94-V0 compliant
    Compliance with IEC61300-3-35
    Compliance with Telcordia GR-326-CORE Compliant
    Parameters Specifications
    Fiber Mode SM MM
    Optical Surface PC or UPC APC PC
    Insertion Loss ＜0.2dB ＜0.2dB ＜0.2dB
    Alternationg loss ＜0.2dB
    Repeatability ＜0.2dB
    Durability ＞1000 times
    Operating temperature -40~85°C
    Storage temperature -40~85°C
    File Name : Format: Size: Download:
