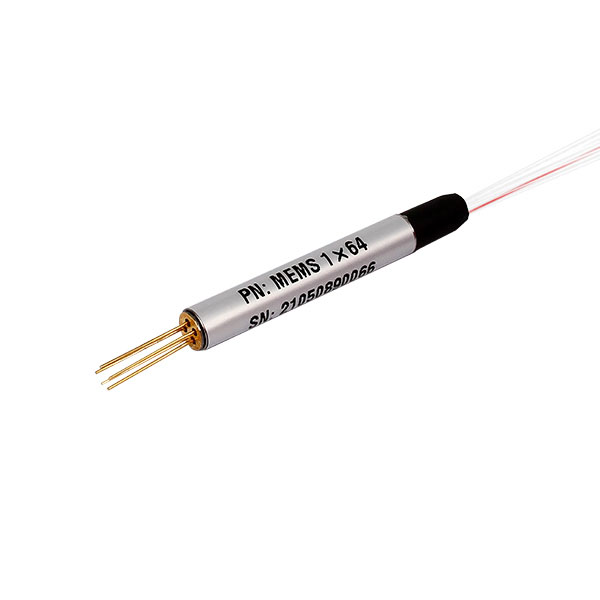

HyOptic MEMS optical switches are designed ideal for OADM, OXC, system monitoring and protection beecause of compact package, which is easy to integrate into high-density optical communication systems. We offer different channels 1x8 1x16 1x32 1x64 Max, packged in steel tube or metal box.

Parameters	Unit	Spec
IL (N≤ 8)	dB	Typical: 0.8  Max 1.0
IL (8<N≤ 16)	dB	Typical: 1.0  Max 1.5
Single Mode	nm	1310 ± 20  1550 ± 20  1625 ± 20
Multi Mode	nm	850 ± 20
Return Loss	dB	MM ≥ 25 SM ≥ 40
Crosstalk	dB	MM≥ 30  SM ≥ 45
PDL	dB	≤ 0.15
WDL	dB	≤ 0.3
TDL	dB	≤ 0.25
Repeatability	dB	≤ ± 0.1
Durability	times	≥ 10^9
Switching time	ms	≤ 20  for N=8
Optical Power	mW	≤ 500
Operating Temperature	℃	-5 ~ + 70
Storage Temperature	℃	-40 ~ + 85
Relative humidity	%	5 ~ 95
