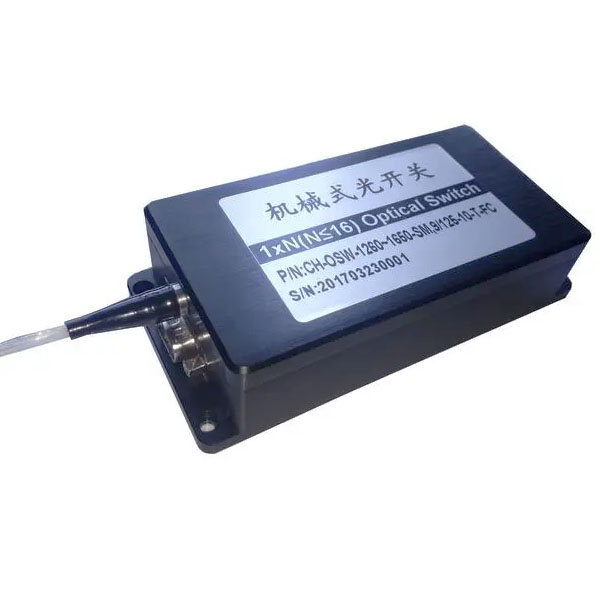

1xN Optical Switch

Features
Low insertion loss and fast switching speed
Support LCD display
Automatic scanning can be set, the "start channel" and "end channel" of the scan can also be set
The "device address" can be set, which is convenient for users to use one serial port to control multiple optical switch instruments
The baud rate of the serial port communication can be set according to the actual situation, 1200, 2400, 4800, 9600, 19200, 57600, and 115200
Support SNMP-based network management, and support CLI, WEB, TELNET and other network management methods

1x64 optical switch
    HyOptic 1xN optical switch is the key device of the new generation of optical network, mainly used in optical switching equipment and systems to realize all-optical routing selection, wavelength selection and self-healing protection functions. We offer different models 1x32 1x64 1x128 Max.
    Parameters Unit Spec
    IL (N≤ 32) dB Typical: 0.8  Max 1.0
    IL (32<N≤ 64) dB Typical: 0.8  Max 1.2
    IL (64<N≤ 128) dB Typical: 0.8  Max 1.3
    Single Mode nm 1260 ~ 1650nm SM
    Multi Mode nm 850 ± 40 / 1300 ± 40，1550 MM
    Return Loss dB MM ≥ 30 SM ≥ 50
    Crosstalk dB ≥ 70
    PDL dB ≤ 0.05
    WDL dB ≤ 0.25
    TDL dB ≤ 0.25
    ER (PM swtich) dB ≥ 16
    Repeatability dB ≤ ± 0.05
    Durability times ≥ 10 million times
    Switching time ms ≤ 10
    Optical Power mW ≤ 500
    Operating Temperature ℃ -5 ~ + 70
    Storage Temperature ℃ -40 ~ + 85
    Relative humidity % 5 ~ 95
    Dimension (N≤ 12) mm 135 × 40 × 32
    Dimension (N≤ 18) mm 135 × 60 × 32
    Dimension  (N≤ 32) mm 135 × 60 × 38
    Dimension   (N≤ 64) mm 150 × 80 × 67
    File Name : Format: Size: Download:
    Contact us for details!

    *

    *

    *

    *
