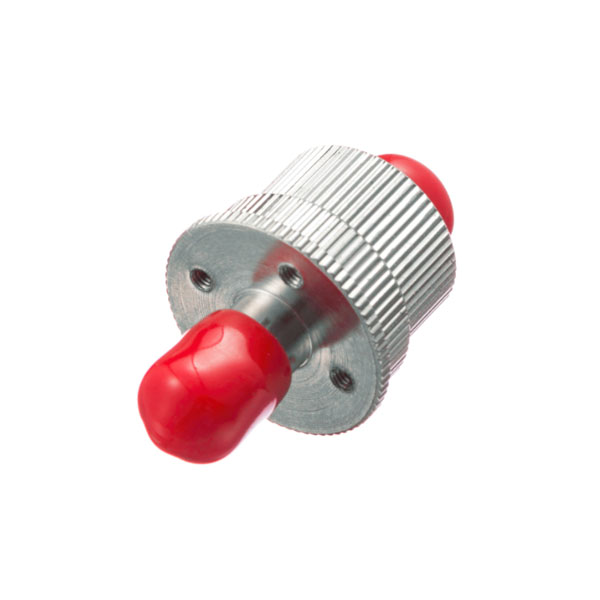

ST Variable Attenuator

Attenuation Type: Fixed or Variable
Fixed Attenuation: 0dB to 30dB optional
Different materials optional: ABS PBT and Metal
Fixed Attenuation accuracy:
1-5 dB tolerance ±0.5dB
6-30 dB tolerance ±10%
Features
High precision alignment
Ceramic sleeve inside
Compact design
RoHS standard
Conform to EN 50173 and EIA - 50173 - A standard
    HyOptic LC Male to Female Attenuator built-in precision ceramic with very low insertion loss, have high quality of mechanical and optical performance. It has different attenuation 0 to 30dB range.
    Parameters Specifications
    Fiber Mode SM MM
    Optical Surface PC or UPC APC PC
    Insertion Loss ＜0.3dB ＜0.3dB ＜0.3dB
    Alternationg loss ＜0.2dB
    Repeatability ＜0.2dB
    Durability ＞1000 times
    Operating temperature -40~85°C
    Storage temperature -40~85°C
    File Name : Format: Size: Download:
    Contact us for details!

    *

    *

    *

    *
