DWDM Add Drop Single Fiber

Operating Wavelengths: ITU Grid 100GHz, 200GHz, 400GHz, 800GHz
Pass Channels: ITU Grid C band C11 to C63 (1527.22nm to 1568.77nm), L band 1569.59nm to 1615.26nm
Customized Optional
1）with upgrade port (UPG, EXP, REF)
2）with monitor port (ratio 1% 2% 3%)
3）with 1310 wide band port (1260-1360)
4）with 1310 wide band port (1260-1400)
5）with 1310 wide band port (1260-1457)
Case Types
1）LGX cassette module
2）ABS plug-in module
3）ABS box pigtailed
4）1U Rackmount
5）1U Rackmount 2 in 1
6）1U Rackmount 4 in 1

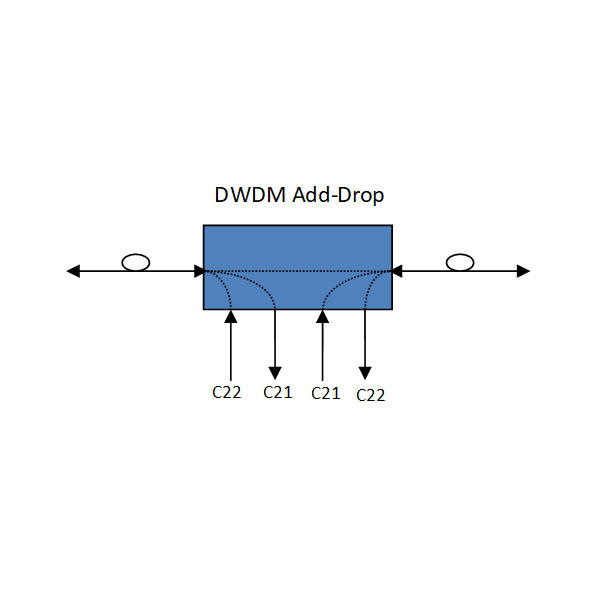

    HyOptic DWDM Optical Add-Drop Multiplexer OADM use DWDM filter to add and drop one or multiple optical DWDM channels into single or dual fiber. It adds and drops Tx/Rx optical signals into Remote site for East and West traffic.

    Features
    Low insertion loss
    High isolation
    Operating temperature -40 to 85 °C
    Telcoredia GR-1209-CORE and GR-1221-CORE
    PCT 168 hours reliability

    Typical applications
    CWDM ADD DROP
     Parameter                4CH 8CH 16CH
    MUX    DEMUX MUX     DEMUX MUX    DEMUX
    Operating Wavelength (nm) ITU 100GHz Grid
    Channel Spacing (GHz) 100GHz
    Channel Passband @-0.5dB (nm) ＞0.3
    Insertion Loss (dB) ≤1.8 ≤3.0 ≤5.0 or 3.5 (with Skip)

    Isolation (dB)    		 Adjacent ＞30
    Non-adjacent ＞40
    Temperature Dependent Loss (dB) ＜0.5
    Wavelength Thermal Stability  (nm/℃) ＜0.002
    Polarization Dependent Loss (dB)                    ＜0.1
    Polarization Mode Dispertion (ps) ＜0.1
    Directivity (dB) ＞50
    Return Loss (dB) ＞45
    Maximum Power Handling （mW） 300
    Operating Temperature (℃） -5~+75
    Storage Temperature (℃） -40~+85
