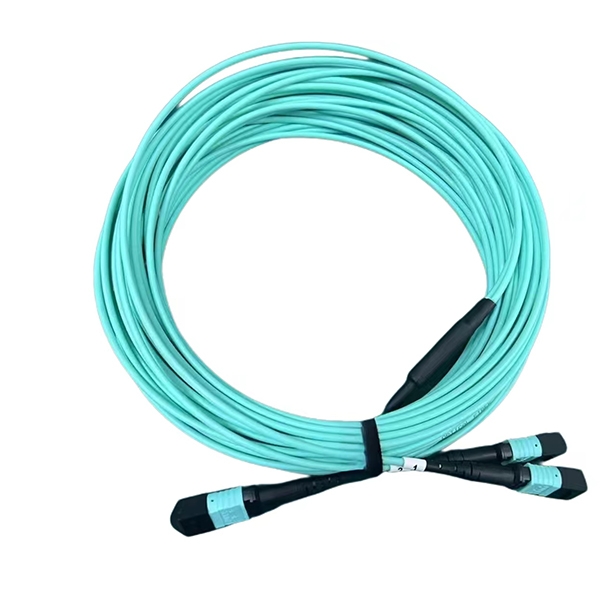

1x16F MPO to 2x8F MPO Breakout Cable

Features
OM4-rated cable recommended for 400 Gb speeds up to 100 m (@ 850 nm)
MTP/MPO 16-fiber end designed for next-gen 400G QSFP-DD transceivers
Connectors tested for low insertion loss and back reflection to ensure top performance
100% tested for low insertion loss and high return loss
Provides 0.6dB Standard & 0.35dB Elite low loss for customers’ choose
    HyOptic 1x 16F MPO to 2x 8F MPO Breakout Cable is mostly used for 400G 800G high-speed interconnection. It is a versatile and high-quality fiber optic cable designed for data communication and networking applications.
    Fiber Connector MPO/MTP Gender Female
    Fiber Mode OM4 50/125μm Wavelength 850/1300nm
    Glass Fiber Multimode Polish Type UPC to UPC
    Insertion Loss 0.35dB Typ. Return Loss ≥20dB
    Attenuation at 850nm ≤2.3dB/km Attenuation at 1300nm ≤0.6dB/km
    Cable Jacket Plenum (OFNP)/LSZH Minimum Bend Radius 7.5mm
    Installation Tensile Load 66N Tensile Strength (Long/Short Term) 80/240N
    Operating Temperature -10 to 70°C (14 to 158℉) Storage Temperature -40 to 85°C (-40 to 185℉)
